产品介绍|Product Introduction

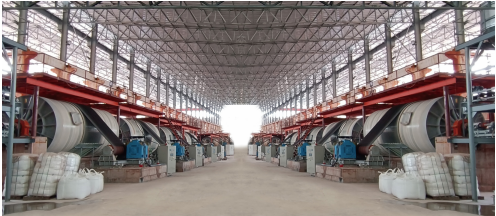

连续式超细磨球磨机是我司基于陶瓷用全连续式球磨机系统的工艺原理之上研发的，并成功应用于锆英砂从原料颗粒到浆料的湿式超细研磨。
成品锆英砂的浆料细度一般为D50至DN97<0.9-0.92μm，细度均达10000目以上。连续式硅酸锆超细磨制浆系统包含连续式球磨机，配
料喂料仓、电子皮带杆、自动球石添加机、定量加水装置，自动润滑系统，实时流量计，地下浆池，浆料输送系统、控制系统、数据中心
等，各设备问通过控制系统联动控制，且能实现智能化、自动化生产，基本实现无人操作。
Continuous ultrafine grinding ball mill is based on the process principle of the full continuaus ball mill system for ceramics devel-
oped by our company, and successfully applied to the wet ultrafine grinding of zircon sand from raw material particles to slurry.The
slurry fneness of the fnished zircon sand is generally D50 to DN97=0.9-0.92μm, and the fneness is mare than 10,000 mesh. Contin-
uous zirconium silicate uitrafne pulping system includes continuous ball mill, batcher feeding bin, electronic belt scale,automatic
ball stone adding machine, quantitative water adding device, automatic lubrication system, real-tme flow meter, underground slurry
tank, slurry conveying system, control system, data center, etc. each equipment is cantralled by the cantral system, and can realize
intelligent and automatic production. Basicaly realize unmanned operation.
产品优点|Product advantage
1、研磨细度可达10000日，粒径分布均匀、质量稳定可靠。
2、连续式硅酸锆超细磨制浆球磨内没有现象，不会出现喷浆伤人的情况，无需人工放浆，大大提高工人的操作安全性。
3、节约能耗，同时减少球磨时间总量提高球磨效率，经客户的实际使用数据表明，相比传统间歌式球磨机节能9.8%以上。
4、入料中转简经过精确的减重计量方式由电脑程序根据配方来控制入料,解决原材料配方入料控制难题，
5、本系统的中间过浆装置采用自主研发的过渡方式，保证本设备长时间运行中间过浆装置不会漏浆，且能够同时补充研磨介质及水份等，

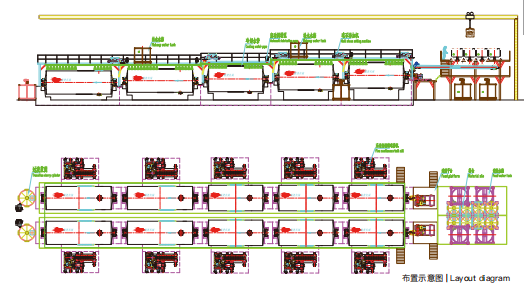

6、连续式球磨机可包含3~6个单元的具有独立传动系统的球磨机，每个单元设计有独立的转速和球石配比，根据原料情况及所需粉料的
细度要求，选择合适的球石配比和转速，从而使效率达到最高，
7、智能控制、大幅节省人工、并减少工人的劳动强度,节约卸浆的时间.
1. grinding fineness up to 10000 mesh, uni form particle size distribution, stable and reliable quality.
2,There is no phenomenon in continuous zirconlum silicate ultrafine pulping ball mill, there willl be no spraying injury, there is no
need to manually discharge the pulp, which greatly improves the operation safety of warkers.
3 save energy, while reducing the total grinding time to improve the grinding efficiency, the customer's actual usc data shows
that compared with the traditional intermitient ball mill energy saving 9.8%
4, the feod transfer cylinder through the accurate weight reduction measurement method by the computer program according to
the formula to cantral the feed, to salive the problem of raw material formula feed control.
5. The intermediate pulping device of the system adopts the transition made developed independently to ensure that the inter-
mediate pulping device will not leak pulp during long-term operation of the equipment, and can supplement the grinding medium and
water at the same time.
6, continuous ball mill can contain 3 - 6 units with an independent drive system of the ball mill, each unit design has an indepen-
dent speed and stone ratio, accarding to the raw material situntion and the required powder fineness requirements, chaase the
appropriate stone ratio and speed, so as to achieve the highest effal ency.
7, intelligent cantral, greatly save labor, and reduce the labor intensity of workers, save the time of unloading.

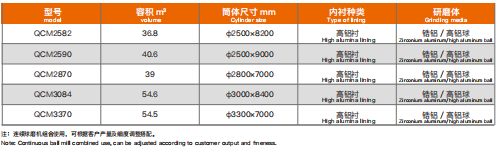

主要技术参数|Main technical parameters
